Product details
 |
Technical Parameters

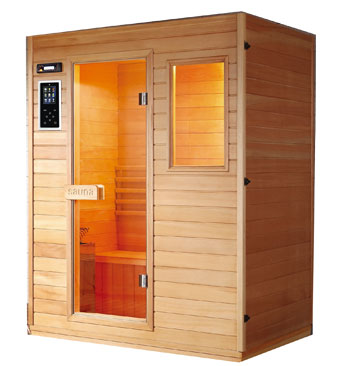

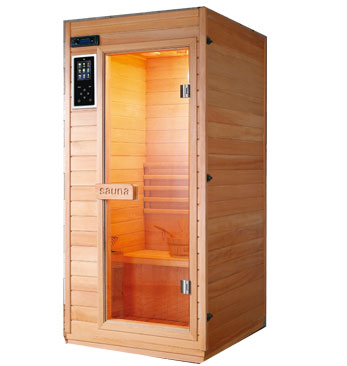

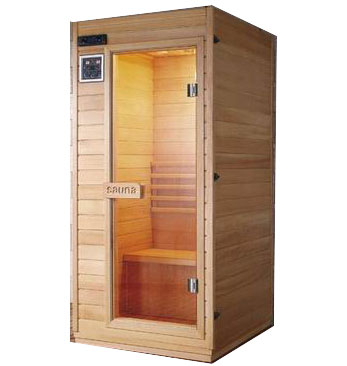

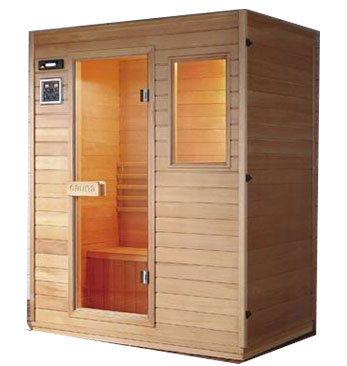

Medel：LiV-SR-S100H
Size：1 0 00 mm ×10 5 0 mm ×1900 mm（2000mm、2100mm、2200mm） Meterial of Room：Hemlock Heating configuration：alternative(Sauna stove or infrared heating tube) Power：Sauna furnace 3KW or infrared heating tube 4*350w=1400W
Product function
Sauna originated in Finland, It has more than 2000 year history. It use the hot and cold stimulation of systemic dry steam flushing repeated ,make blood-vessel repeated expansion and contraction, it can enhance the elasticity of blood vessels, preventing hardening of the arteries, the efficacy for the human body: A. burning fat B.detoxification C. B. beautify the skin D. Raxation,relieve fatigue
Temperature regulation:the temperature setting range is from 25 ℃ to 60 ℃ (can be switch to Fahrenheit). When the temperature is higher than the set temperature of the panel display, the sauna heating device will stop working.
Time adjustment:time setting range is 0-90 minutes, when the heating time is reached or the ambient temperature reaches the set value, the heating will stop working automatically. FM / CD function:You can play music files, CD, MP3, SD card, U disk and other functions of the radio play. The dome light features: sauna with an internal dome light AC12V/20W. |
 |
Product components and features
| Name of component | Specification | Features |
| LCD control system | 164.8mm×70.8mm | Desjoyaux independently developed the exclusive LCD control system for sauna room series of life in villa.It is fashion,elegant and easy to understand. Can adjust the temperature and the time in the sauna room. |
| CD/FM Player | Voltage 10v-14.4v | mainly used to play music, use the sauna at the same time together with the music appreciation extraordinary sauna. The player has USB port, CD, MP3, SD card, U disk can be used to play music,In addition,it also has a radio function. |
| Wooden House | Finland pine | Use Finland pine from Nordic,Compare with other pines,Finland pine have good stability,physical compression,nail strong,super-temperature capabilities and so on. |
| Heating configuration | alternative | Sauna furnace or infrared heating tube) |
| Dome light | AC12V/20W | Dedicated light for special custom sauna, explosion-proof, durable. |
| The ventilation hole | Φ20mm × 10 pcs | at the top of the room have vents for ventilation, according to their personal physical to open or off. |
| The electric box | AC220V ± 10% | special customized electrical box has a reliable stability and security |
| Hourglass | 15 minutes | humanized design, with decorative and Temporal support |
It use the electric heating equipment - sauna stove release the electricity energy directly, the room temperature rises, and people will sweat. Temperature dry steam, wet steam, up to about 100 ℃. Dry steam due to the moisture-free, especially for patients with rheumatism, while there is no taste of steam, the nose will be more comfortable. However, after finished the steaming, the skin will be drier, so you need to moisturize.
To boil water generated the steam, and then discharged through a pipe, It will generate plenty of moisture. The temperature is controlled at about 50 ℃. Most of the ladies will choose wet steam because after finished wet steam, the skin will more previously ruddy and juicy.
|
|
|

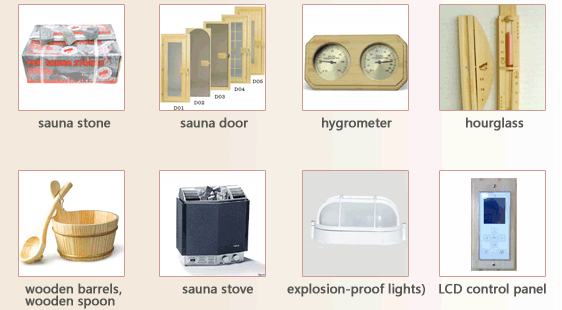

A. Rooms (according the size to calculate the plate number of wall panels and ceilings)
B. sauna stove (according the room volume to calculate the power ,If it is light wave room, so will be the infrared lamp) C. thermostat (internal control furnace don’t need this) D. wooden chair (high-lying plate, low-lying plate, wooden pillow) E. Platform F. cotton insulation G. Air intake and outtake H. lighting (explosion-proof lights) I. Stove hoarding (if it is infrared light room, don’t need this) J. wooden barrels, wooden spoon (infrared light room, no this) K. hygrometer, hourglass L. CD player, radio M. sauna stone (if it is infrared light room, don’t need this) N. sauna door |
 |
 |
Custom-made type: according to the customer requirements or actual truth of area, Internal as the size of single sauna board as requirement. Commonly, the outside of custom-made sauna is the wall brick wall or several walls.Between the board and the wall use the insulation cotton to separate. It use the non-standard size, the place of installation is easy to sweat. not water-proof. The wall of outside need other decoration. |
|
|
Combined type: the molding fixed size sauna room, using double-sided wood, insulation cotton in the middle. The height of common fixed room is 1900mm -2200mm. The common shape is square, angular, arc. Modular sauna advantages to both the inside and outside walls, exterior walls can save ?out side wall works, and it is simple and quick to install, easy to transport. |
|
|
Internal control type: sauna stove comes with a temperature controller and timer, suitable for home or small sauna room. |
|
|
External control: temperature controller and timer sauna stove comes installed on the outside of the housing body, controlled by the operator, suitable for large-scale commercial sauna room. |
Finland pipe: long growth cycle, only 100 days per year growing season, hard wood, the burl is small and less, the texture is uniformity and straight. corrosion, but more trees node than cedar.
|
Hemlock: hard wood and fine texture, straight and uniform texture. Rings clear heartwood and sapwood is almost the same, and has excellent abrasion resistance, smooth surface touch, no smell, no resin.
|
Red cedar: natural wood preservative, excellent stability and long service life, not easily deformed, and not eroded by insect, suitable for high-humidity environment.
|
And cedar trees:rare and valuable, its growing season long, simple and elegant, the color is brighter, clear wood, natural wood knot, hard material, density, water will not rot, not black, corrosion insulation, mildew, odor,static, anti-bacterial, not easily deformed, wear characteristics, easy maintenance, the surface has a wealth of natural wood section, full of art, giving a kind of beauty to enjoy.
|
| Table for stove selection (According the volume of dry steam room to select the power of stove) | |||||
| The volume of dry steam room (Unit m3) | 1.3-3.8 | 2-4.5 | 3-6 | 5-8 | 7-12 |
| Power of the sauna stove (KW) | 3 | 3.5 | 4.5 | 6 | 8 |
| The volume of dry steam room (Unit m3) | 8-14 | 9-15 | 11-20 | 15-35 | 22-43 |
| Power of the sauna stove (KW) | 9 | 10.5 | 12 | 16 | 20 |
Excellent processing, focus on the details ;
A variety of design styles;
The most stable of independent research and design, reliable, safe and microcomputer control circuit system;
A variety of electrical materials and other appropriate accessories which all are the best quality products of domestic ,fully guaranteed for product ,superior performance and security, stability, reliability;
Rationalization buy recommendation of senior sales staff;
Dedicated customer service engineers to provide a quick home repairing.
Shenzhen Desjoyaux Import & Export Co., Ltd. Promise that to all the sauna room within the date of delivery to twelve months, according to our requirements and use manual transport to install, operate and maintain, we will provide the quality assurance, If after more than twelve months beyond the warranty period, we will provide forever after-sales service to all of our product. (except the labor, cost of consumable parts).
We have the option to repair or to replace parts. If within our commitment, the parts of maintenance which before return must was approved by our company, the freight collection. If need to buy the replaced items, please pay it and pay the shipping cost.
Terms of matters prompted the user manual is not in the maintenance of the column.
If because of the incorrect using, negligence and accidents break ,inadequate power supply when using, failing to use the manual to use, as well as the damage caused by the modification of the technical staff and maintenance or other reasons which is not within the scope of the terms of the maintenance.
The term is not including the anyone man-made damage and accident caused by the destruction. If Signs to produce mobile, changes, replace, damage or make illegible is not in the list of maintenance.
The sauna is not suited to any extreme, not subject to repair out of unusually corrosive.
We are only responsible for the maintenance of our products.
We will not be liable for any loss of other things of damage, loss or damage and human factors.
For specific matters of after-sales service, please contact our after-sales Ministry. Thank you!
