Performance
products

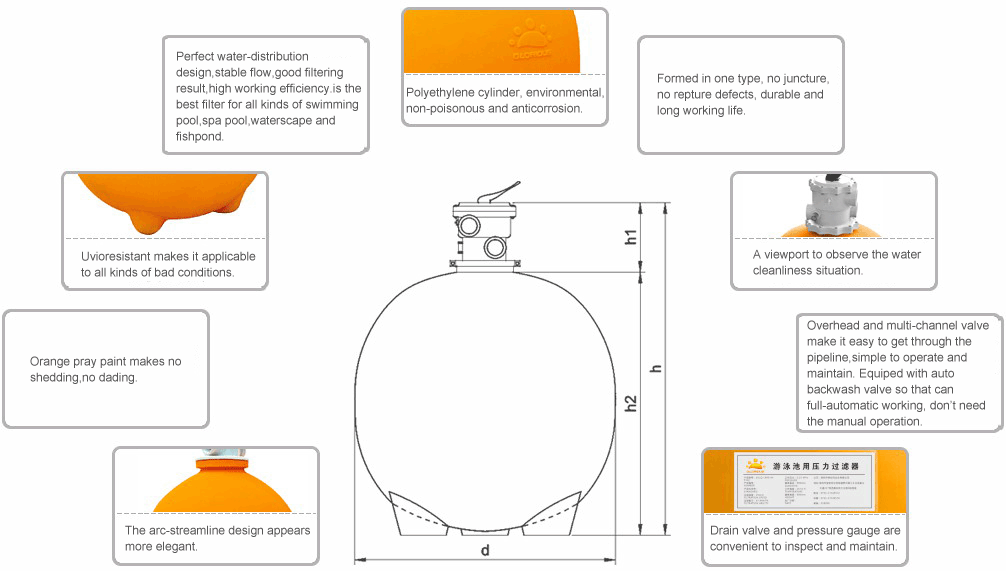

Size
| Model | Inner Diameter(mm) | Pipe Diameter(mm) | h1 | h2 | h | Thickness(mm) |
| RS-F450-V04 | 450 | DN40 | 172 | 640 | 812 | ≥6 |
| RS-F600-V04 | 600 | DN40 | 172 | 720 | 892 | ≥10 |
| RS-F900-V04 | 900 | DN40 | 212 | 950 | 1162 | ≥13 |
Technical Parameter
| Model | Pressure(Mpa) | Filtration Area(㎡) | Water Capacity(m3/h) | |||
| 15m/h | 20m/h | 25m/h | 30m/h | |||
| Filtration Area(㎡) | 0.25 | 0.16 | 2.38 | 3.18 | 3.97 | 4.77 |
| RS-F600-V04 | 0.25 | 0.28 | 4.24 | 5.65 | 7.07 | 8.48 |
| RS-F900-V04 | 0.25 | 0.64 | 9.54 | 12.72 | 15.9 | 19.08 |
