Performance

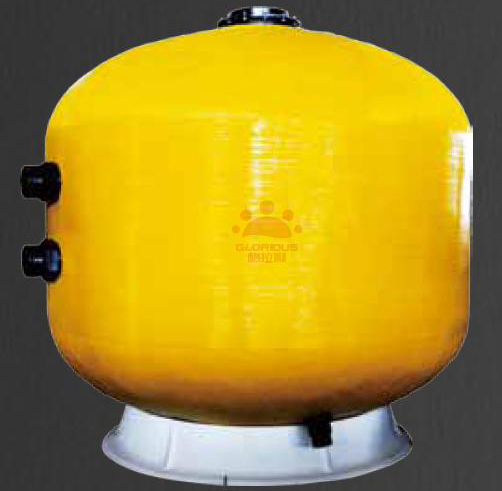

The cylinder is made by fiber glass and stronged by plastics
Anti-abrasive,anticorrosion and non-flexible
Easy to install and maintain
Viewport makes it easier to observe the back flush and water cleanness very well
Be equipped with drain valve and pressure gage,easy to test and maintain
The perfect design and stable flow
products
| Model | Diameter /D(mm) | External diameter | Water outlet heighth/1mm | Water outlet heighth/2mm | Total height/Hmm | Net weight/kg | Packaging whole weight/kg |
| RS-F1200-V03 | 1200 | 2 | 780 | 855 | 1310 | 59.8 | 65.4 |
| RS-F1400-V03 | 1400 | 3 | 650 | 950 | 1480 | 116.2 | 130.2 |
| RS-F1600-V03 | 1600 | 3 | 650 | 950 | 1680 | 131.2 | 154.3 |
| RS-F1800-V03 | 1800 | 4 | 750 | 1100 | 1890 | 253.5 | 298.8 |
| RS-F2000-V03 | 2000 | 6 | 890 | 1290 | 2120 | 312.2 | 357.5 |
Technical parameter table
| Model | Flow m3/h | Sand content/kg | Sand content/Kg | Packing size/L*W*H | |||
| 15m/h | 20m/h | 25m/h | 30m/h | ||||
| RS-F1200-V03 | 17.0 | 22.6 | 28.3 | 34.0 | 1.13 | 920 | 1215*1215*1280 |
| RS-F1400-V03 | 30.1 | 40.2 | 50.2 | 60.3 | 2.01 | 2180 | 1500*1500*1780 |
| RS-F1600-V03 | 38.2 | 50.9 | 63.5 | 76.2 | 2.54 | 3100 | 1950*1950*1990 |
| RS-F1800-V03 | 22.5 | 30.0 | 37.5 | 45.0 | 1.25 | 1460 | 1350*1350*1580 |
| RS-F2000-V03 | 47.1 | 67.8 | 78.5 | 94.2 | 3.14 | 4250 | 1950*1950*2220 |
