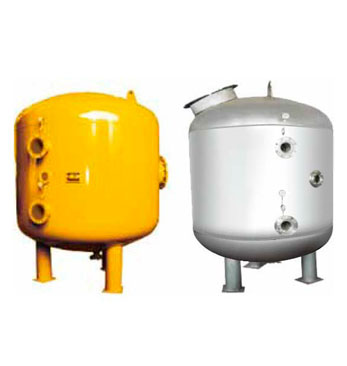

Vertical steeliness sand pressurized filter The support layer of filter is coarse aggregate and the filter layer is made by natural quartz sand, heterogeneous material and reasonable proportion. This filter is siutable for swimming pools and water parks. Features: inner pipes are stainless steel made,long working life. The innner fittings are connected by flanges,easy to install and maintain. Double viewports make it easy to observe filter membrane and water condition. Bottom water outlet empty the water when changing filtration material which can be unloaded by discharge port. Sheel material can be made by stainless steel or carbon-steel lining materials as per customers’requirment. |
 |
| Model | Working Pressure（MPa） | Filter diameter/φ（mm） | Filter height/H（mm） | Calculation of filtration area/F（m2） | Outlet height from the ground/H1(mm) | Inlet and outlet spacing/H2(mm) | Inlet/outlet pipe diameter/DN1(mm) | Inspection hole diameter/D1(mm) | Discharging hole diameter/DN2(mm) |
|
RS-F1200-V01 RS-F1200-V02 |
0.45/0.60 | 1200 | 2120 | 1.13 | 650 | 900 | 100 | 400 | 180 |
|
RS-F1400-V01 RS-F1400-V02 |
1400 | 2210 | 1.53 | 680 | 900 | 100 | 400 | 180 | |
|
RS-F1600-V01 RS-F1600-V02 |
1600 | 2320 | 2.00 | 750 | 900 | 125 | 400 | 180 | |
|
RS-F1800-V01 RS-F1800-V02 |
1800 | 2400 | 2.54 | 900 | 900 | 150 | 400 | 180 | |
|
RS-F2000-V01 RS-F2000-V02 |
2000 | 2620 | 3.14 | 870 | 1000 | 150 | 400 | 180 | |
|
RS-F2200-V01 RS-F2200-V02 |
2200 | 2700 | 3.80 | 950 | 1000 |
175 200 |
400 | 180 | |
|
RS-F2400-V01 RS-F2400-V02 |
2400 | 2900 | 4.52 | 1000 | 1000 | 200 | 400 | 180 |

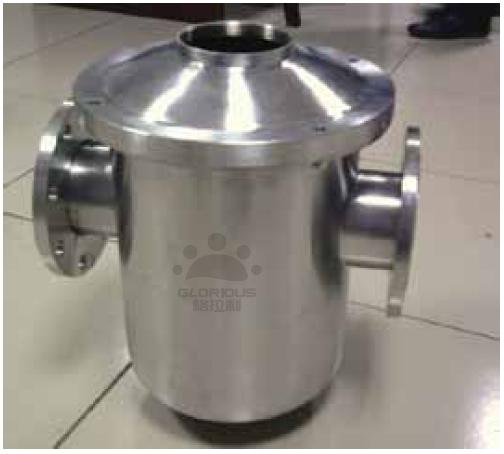

Hair Collector
This is used for pretreatment of water to clean hair or leaves and so on so that pumps can be protected by the collector. The device is made by high-quality stainless steel, anticorrsion and long working life.It’s the best option for warter treatment in pools ,fountains and waterscapes.
