Brand introduction

Glorious brand is positioning energy-saving, environmental protection, reliable and high-quality. We sell the products to abroad, at the same time, we undertake the engineering installation and service of project in China. We do our best to supply the system solution which is advanced technology, energy-saving, low operation charge and easy to maintain.
Glorious(Shenzhen) Ltd was established in Shenzhen by the headquarters that Glorious(HongKong) Ltd authorized.It got the authorization by the company headquarters, to produce the Glorious brand series products in China.
Glorious(Shenzhen) Ltd was established in May 1998,it is a Comprehensive enterprise including research and development, production ,import and export, domestic sales,installation and After-sales service.In the past ten years, Glorious(Shenzhen) Ltd is always walk in the forefront of the industry in the fierce market competition,the products are hot sale in many countries .
Glorious(Shenzhen) Ltd will continue innovation，taking the technology as the core,depending on the quality of life, to serve customers as god.We provide the "First-class products"、”Professional design”,” Perfect construction”,” Top services” for our customers.Leading the swimming pool industry into another peak.

产品分类

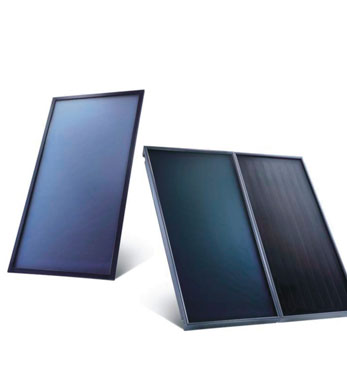

The main category of Glorious solar heating system
aluminum composite collector	Collector plating with black chrome	Collector plating with blue tape	Wall-mounted collector on the balcony

Product Category

	Use magnetron sputtering cermet from Germany coating film. high heat collecting,small heat loss, the absorption rate up to 97%,emission rate as low as 5%,it challenge the limit of solar energy light-thermal conversion rate, high heating collection efficiency, gain large heat.
	We import the CNC laser welding equipment from Europe, can realize laser welding between panel and pipe, strong solder joint., welding spot with strong bonding,small thermal resistance.
	Flow channel from the back of coating film to weld, heat-absorbing film, don’ t hurt the absorption of heat film, high heating collection efficiency;
	Specially design for mounting the slot and waterproof slot,so that can realize the solar energy and the building integration.

	Use the PPG ultra-white tempered glass cover,the rate of full-spectrum light transmission up to 92%94%,high mechanical strength, safe and secure.
	The flow channel is made of high-purity oxygen-free pure copper, corrosion resistance, can be pressured, long life, safe and reliable;
	Border and backplane integrated, beautiful and applicable, corrosion resistance, good sealing, waterproof, moisture barrier, small heat loss small;
	The continuous seamless seal material, high temperature resistance, aging resistance, durability, long life;
	All use biodegradable and recyclable materials, If the product over life, no pollution to environment;

Technology Parameter

Performance parameters of flat solar commercial hot water system

Material	Copper and aluminum composite atmospheric collector（1#）	Copper and aluminum composite atmospheric collector（2#）	Copper and aluminum composite pressure Collector	Full red copper collector plating with black chrome	Full copper plated blue film Collector	Aluminium sheet collector plating with black chrome	Aluminium sheet collector plating with blue tape
Surface treatment	Anodizing	Anodizing	Anodizing	Plating with black chrome	Vacuum plating with blue tape imported from Germany	Plating with black chrome	Vacuum plating with blue tape imported from Germany
Structure type	Tube-wing style	Tube-wing style	Tube-wing style	Tube sheet style	Tube sheet style	The whole board style	The whole board style
Absorption rate	0.95±0.03	0.95±0.03	0.95±0.03	0.95±0.03	0.95±0.02	0.95±0.03	0.95±0.02
Emissivity	0.18±0.05	0.18±0.05	0.18±0.05	0.09±0.05	0.05±0.05	0.09±0.05	0.05±0.05
Frame material thickness	0.85mm	0.85mm	0.85mm	0.85mm	0.85mm	0.85mm	0.85mm
Frame color	Silver white	Silver white	Silver white	Silver white	Silver white	Silver white	Silver white
Gross area	2㎡	2㎡	2㎡	2㎡	2㎡	2㎡	2㎡
Daylighting area	1.85㎡	1.85㎡	1.85㎡	1.85㎡	1.85㎡	1.85㎡	1.85㎡
Absorber area	1.85㎡	1.85㎡	1.85㎡	1.85㎡	1.85㎡	1.85㎡	1.85㎡
Seal	Anti-aging PVC strip	Anti-aging PVC strip	Anti-aging PVC strip	Anti-aging PVC strip	Anti-aging PVC strip	Anti-aging PVC strip	Anti-aging PVC strip
Number of cover plate	1	1	1	1	1	1	1
Material of cover plate	4mm float glass	4mm float glass	4mm float glass	4mm float glass	4mm float glass	4mm float glass	4mm float glass
Light transmittance of cover plate	About 89%	About 89%	About 89%	About 89%	About 89%	About 89%	About 89%
Baseplate of material	0.30mm plating with sheet zinc	0.30mm plating with sheet zinc	0.30mm plating with sheet zinc	0.30mm plating with sheet zinc	0.30mm plating with sheet zinc	0.30mm plating with sheet zinc	0.30mm plating with sheet zinc
Insulation materials(mm)	Baseplate 16K*30 glass wool frame: polystyrene	Baseplate 16K*30 glass wool frame: polystyrene	Baseplate 16K30 glass wool frame: 48K20glass	Baseplate 16K30 glass wool frame: 48K20glass	Baseplate 16K30 glass wool frame: 48K20glass	Baseplate 16K30 glass wool frame: 48K20glass	Baseplate 16K30 glass wool frame: 48K20glass
Maximum working pressure	0.3MPa	0.3MPa	0.6MPa	0.6MPa	0.6MPa	0.6MPa	0.6MPa
Weight	About 32kg	About31.5kg	About34kg	About35kg	About35kg	About35kg	About35kg
Warranty	2years	2years	3years	3years	3years	3years	3years
